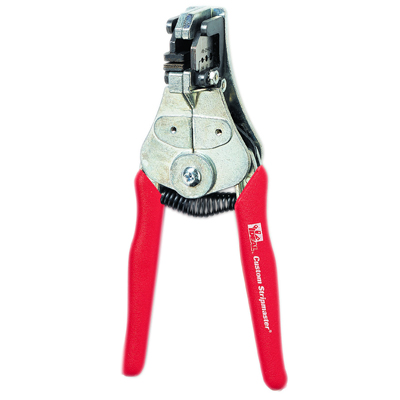

定制Stripmaster® &Stripmaster® Lite剥线钳

特征

剥开 #10 AWG至 #30 AWG实心或绞合线
模具型刀片达到精确剥离
沉头孔尺寸能精确地固定电线中心，以防止接触不必要的导体
军用型刀片分开不需要的绝缘材料
可选的短止动闩锁和透明导线止动器
定制的Stripmaster® Lite尺寸是定制的Stripmaster®剥线钳的四分之三
定制的Stripmaster® Lite只需三分之一的力气剥线
缓冲，防滑，舒适的握把
提供工程服务和定制刀片。请联系工厂获取完整的产品和刀片编号列表

电线尺寸/剥线孔直径
目录编号	只有刀片	10	12	14	16	18	20	22	24	26	28	30
For Type E TEFLON® (600V)
		剥切孔直径
45-176	L-5559	.119 .136	.096 .113	.076 .0935
45-177	L-5560				.061 .081	.052 .070	.042 .0595	.034 .052	.028 .043	.023 .039
45-178	L-5561									.023 .039	.019 .035	.016 .032

For Type EE TEFLON® (1000V)
Catalog Number	Blade only	沉头孔直径（英寸）
45-173	L-5562	.119 .144	.096 .125	.076 .104
45-174	L-5563				.061 .089	.052 .0785	.042 .067	.034 .0595	.028 .055	.023 .0465
45-175	L-5564									.023 .0465	.019 .043	.016 .042

适用于PVC及其他绝缘材料
Catalog Number	Blade only	沉头孔直径（英寸）
45-170	L-5210	.116 .154	.0937 .138	.076 .113
45-171	L-5211				.062 .096	.052 .086	.042 .073	.035 .0635	.0292 .0595	.022 .052
45-172	L-5436									.024 .043	.020 .040	.016 .037

适用于绕线和其他薄绝缘线
目录编号	只有刀片	沉头孔直径（英寸）
45-179	L-7625	Three identical Holes										.012 .020
45-169	L-9300	Solid Wires							.024 .033	.018 .025	.014 .023	.012 .019

Wire Size/Stripping Hole Diameter
目录编号	只有刀片	6.0	4.0	2.5	1.5	1.0	.5	.22	.2	.13	.08	.05
For Type E TEFLON® (600V)
		Cutting Hole Diameter Counterbore Diameter (mm)
45-176	L-5559	3.02 3.45	2.44 2.87	1.93 2.37
45-177	L-5560				1.55 2.06	1.33 1.78	1.07 1.5	.863 1.32	.711 1.09	.584 .99
45-178	L-5561									.584 .99	.482 .889	.406 .813

For Type EE TEFLON® (1000V)
目录编号	只有刀片	Cutting Hole Diameter Counterbore Diameter (mm)
45-173	L-5562	3.02 3.6	2.44 3.17	1.93 2.87
45-174	L-5563				1.55 2.49	1.33 1.99	1.07 1.70	.863 1.5	.711 1.39	.584 1.17
45-175	L-5564									.584 1.17	.482 1.09	.406 1.07

For PVC & Other Misc. Insulations
目录编号	只有刀片	Cutting Hole Diameter Counterbore Diameter (mm)
45-170	L-5210	2.94 3.91	2.38 3.45	1.93 2.87
45-171	L-5211				1.57 2.44	1.33 2.18	1.07 1.85	.889 1.61	.736 1.5	.560 1.33
45-172	L-5436									.609 1.09	.508 1.01	.406 .940

For Wire Wrap & Other Thin Insulated Wire
目录编号	只有刀片	Cutting Hole Diameter Counterbore Diameter (mm)
45-179	L-7625	Three identical Holes										.305 .508
45-169	L-9300								.609 .838	.457 .635	.356 .584	.305 .482

Wire Size/Stripping Hole Diameter
目录编号	只有刀片	16	18	20	22	24	26	28	30
MIL-W-16878 Type E 600V TEFLON® Wire
		Cutting Hole Diameter Counterbore Diameter (mm)
45-638	LB-918	.061 .081	.052 .070	.042 .0595	.034 .052
45-639	LB-919			.042 .0595	.034 .052	.028 .043	.023 .039
45-640	LB-920					.028 .043	.023 .039	.019 .035	.016 .032

MIL-W-16878 Type EE 1000V TEFLON® Wire
		Cutting Hole Diameter Counterbore Diameter (mm)
45-635	LB-915	.061 .089	.052 .0785	.042 .067	.034 .0595
45-636	LB-916			.042 .067	.034 .0595	.028 .055	.023 .0465
45-637	LB-917					.028 .055	.023 .0465	.019 .043	.016 .042

General Purpose PVC
		Cutting Hole Diameter Counterbore Diameter (mm)
45-632	LB-912	.062 .089	.052 .086	.042 .073	.035 .0635
45-633	LB-913			.042 .073	.035 .0635	.0292 .0595	.022 .052
45-634	LB-914						.0292 .0595	.024 .043	.016 .037

For Wire Wrap & Other Thin Insulated Wire
		Cutting Hole Diameter Counterbore Diameter (mm)
45-641	LB-921	Four Holes, same size				.012 .020
45-631	LB-911	Solid Wire	.024 .033	.018 .025	.014 .023	.012 .019
